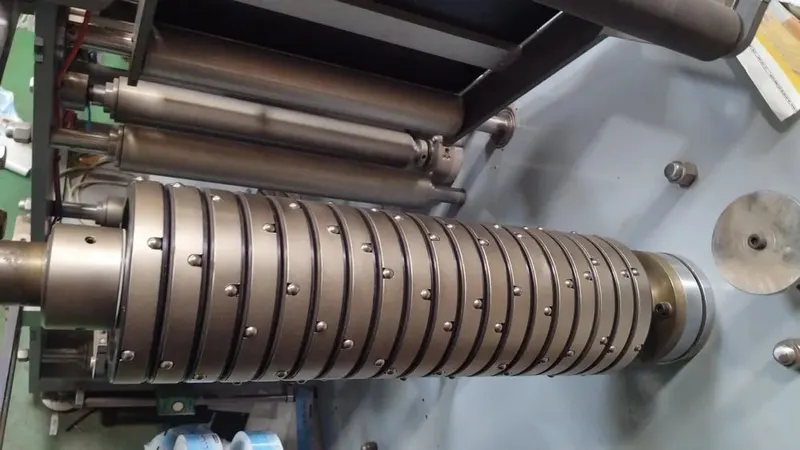

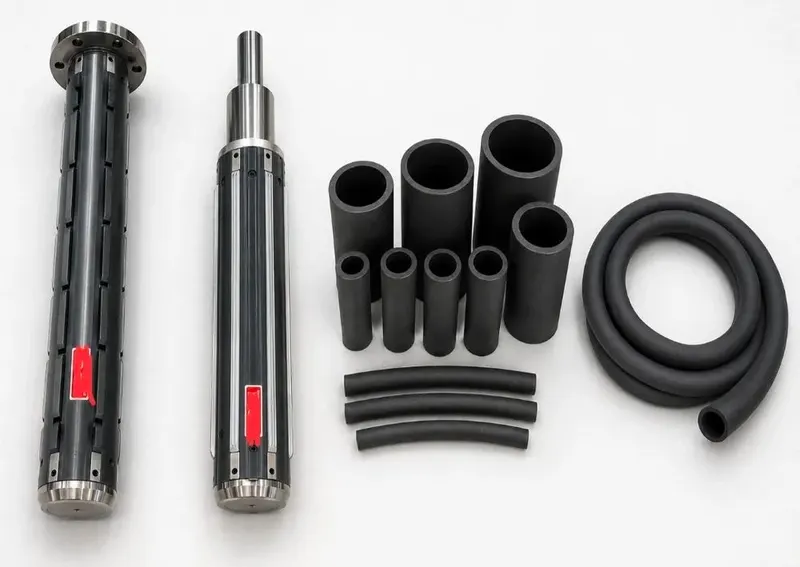

3 Inch Pneumatic Air Expanding Shaft

Technical specifications

Machine details

• Air Shaft Technical Specifications:
• It is capable of compensating speed variation due to gauge variation with multi-cores.
• Minimum 20 mm core width is possible.
• Reel holding is possible at any position across the width.
• No-time lost in re-positioning cores since no distance pieces are required.
• Shaft can run at very high speed.
• Suitable for core ID. 3″ and 6″
• Length as per Customer requirement.
• Load up to 2 tons
• Suitable for Core l. D. dia 3″, 4″, 6″, 8″ (metric size and special sizes also produced)
• Length as required
• Speed up to 1000 Mtrs/min
• Suitable for core materials: Paper, Steel, Thermoplastics
• Minimum core width 20 mm
• Pipe – Steel
• End Generals – Steel – simple or hardened
• Cam – Brass
• Lugs – Hardened Steel / Rubber
• Air Expaendable Shaft

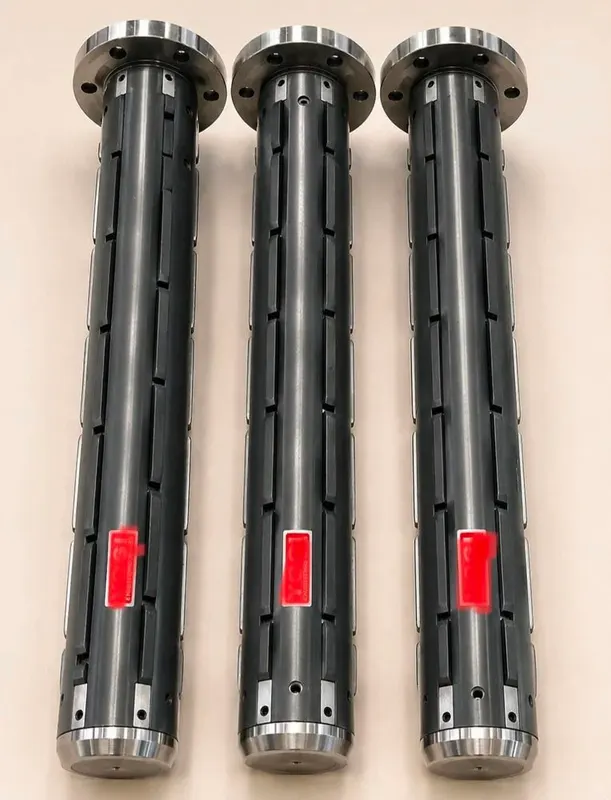

• Lug Type Air Shaft
• Bottom Knife Holding Shaft
• Ball Shaft
• Mechanical Shaft
• Mulit Blader Shaft
• Short Lug Type Shaft
• Leaf Type Shaft
• Air-Mechanical Type Shaft
• With Intern Leaves and Short Lugs Shaft
• Carbon Fibre Shafts

Additional information

• Availability: In Stock
• Ships from: Ahmedabad
