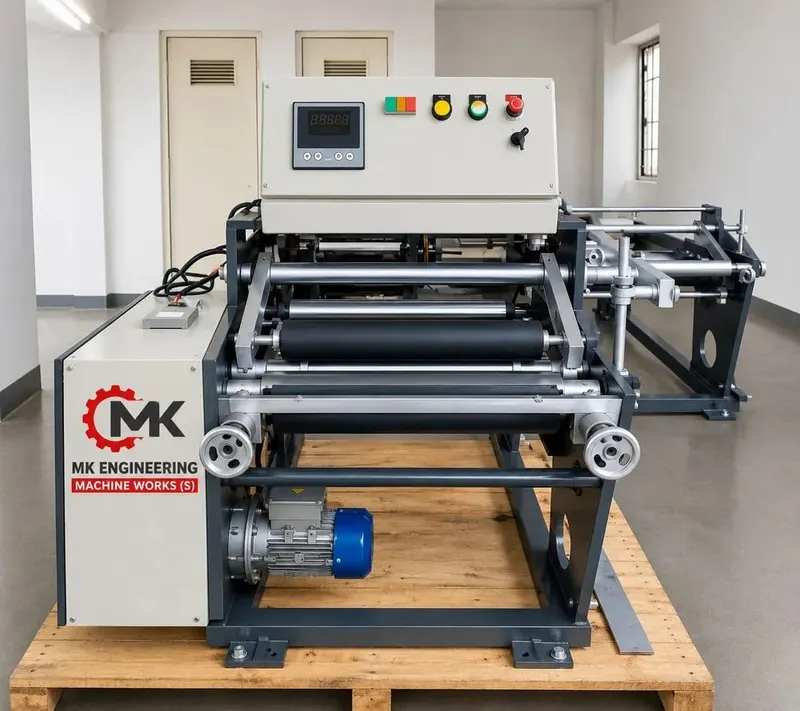

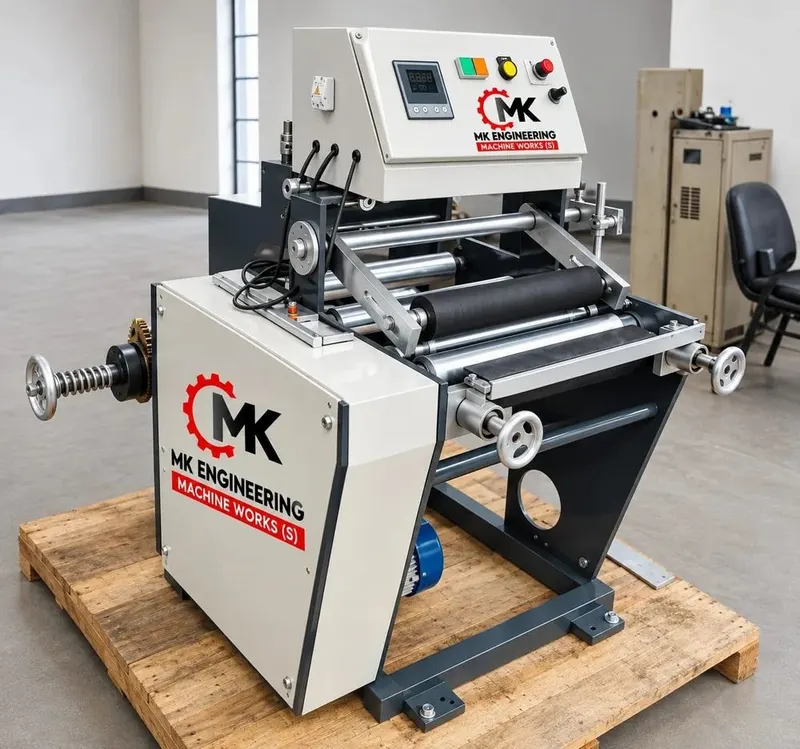

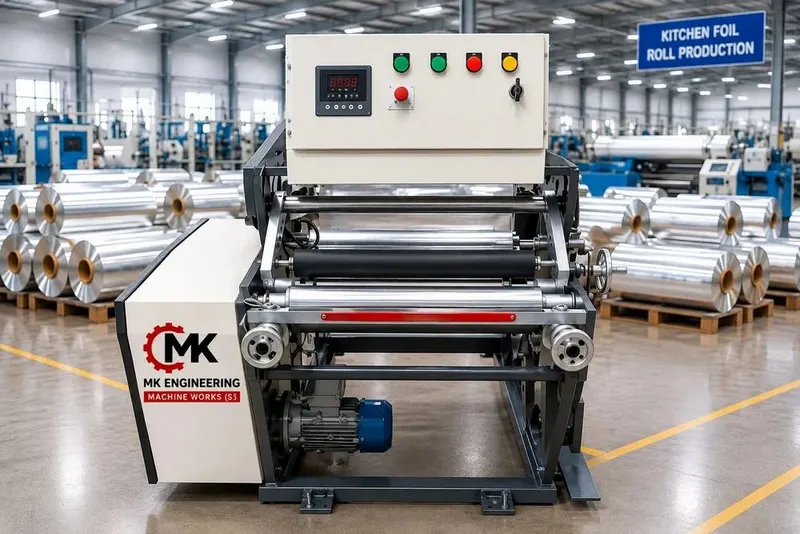

Aluminium House Foil Rewinding Machine

Aluminium House Foil Rewinding Machine: overview

• Aluminium House Foil Roll Rewinding Machine
• MS Plate Heavy Duty Machine Structure
• Maximum Roll Width 300mm & 500mm Standard
• Material will be Process Aluminium House Foil, Butter Paper
• Material to be rewind:-10 to 20 micron
• Motor 1 HP A.C. Motor
• Control Panel 1 HP A.C.-Digital A.C. frequency Drive
• (Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed adjustable, Sensor)
• Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
• Jumbo Roll Capacity Upto 100 Kg
• Mechanical Brake System for Tension Unwinder Jumbo Roll
• Rewinding Speed: 100 MPM.
• Production Capacity Approximately: 400 to 500 roll per day
• Per 9 Hours Working. (72 mtr roll)
• Weight of Machine 500 Kg Approx.
• Machine Available: Single/ Three Phase
