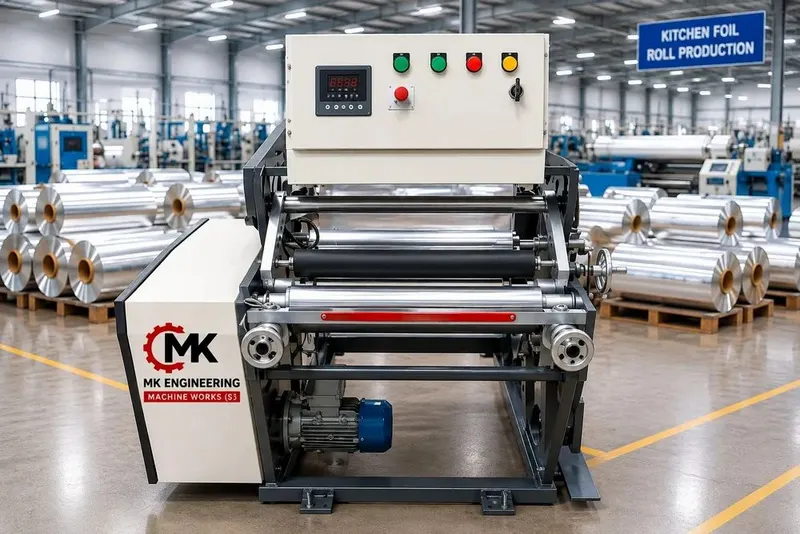

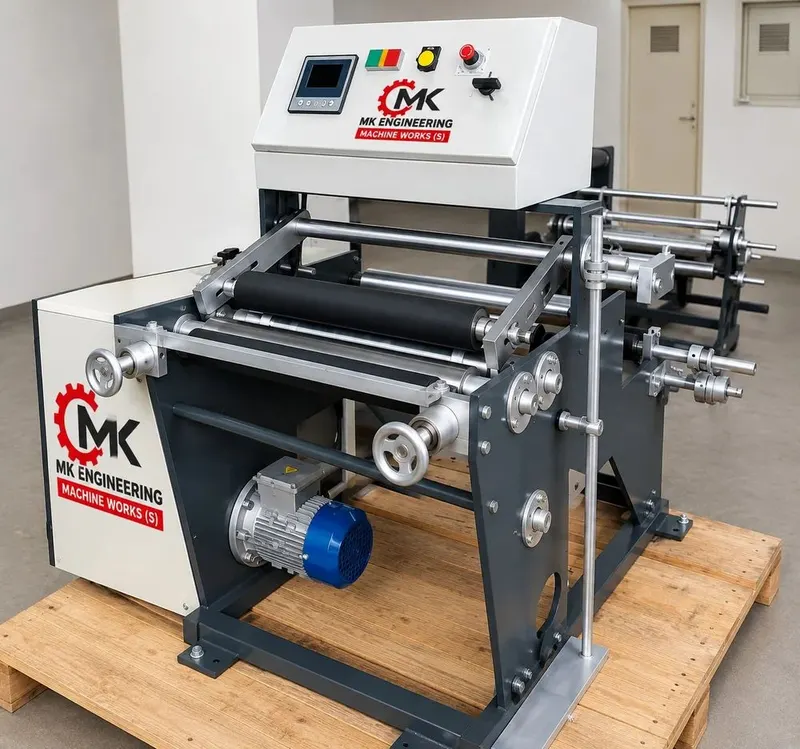

500mm Aluminum House Foil Roll Rewinding Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Parent Roll Width: 500 mm
Machine Speed: 40 m/min
Automation Grade: Automatic

₹1,32,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Foil Type	Aluminium Foil
Parent Roll Width	500 mm
Finished Roll Length	18 m
Machine Speed	40 m/min
Core ID	32 mm
Automation Grade	Automatic
Power Requirement	0.5 HP
Phase	Three Phase

Machine details

Aluminium House Foil Roll Rewinding Machine
MS Plate Heavy Duty Machine Structure
Maximum Roll Width 300mm & 500mm Standard
Material will be Process Aluminium House Foil, Butter Paper
Material to be rewind:-10 to 20 micron
Motor 1 HP A.C. Motor
Control Panel 1 HP A.C.-Digital A.C. frequency Drive
(Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed adjustable, Sensor)
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Jumbo Roll Capacity Upto 100 Kg
Mechanical Brake System for Tension Unwinder Jumbo Roll
Rewinding Speed: 100 MPM.
Production Capacity Approximately: 400 to 500 roll per day
Per 9 Hours Working. (72 mtr roll)
Weight of Machine 500 Kg Approx.
Machine Available: Single/ Three Phase

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555

500mm Aluminum House Foil Roll Rewinding Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Parent Roll Width

500 mm

Machine Speed

40 m/min

Automation Grade

Automatic

₹1,32,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Quality tested

Custom built

Pan-India delivery

Foil Type

Aluminium Foil

Parent Roll Width

500 mm

Finished Roll Length

18 m

Machine Speed

40 m/min

Core ID

32 mm

Automation Grade

Automatic

Power Requirement

0.5 HP

Phase

Three Phase

Machine details

Aluminium House Foil Roll Rewinding Machine

MS Plate Heavy Duty Machine Structure

Maximum Roll Width 300mm & 500mm Standard

Material will be Process Aluminium House Foil, Butter Paper

Material to be rewind:-10 to 20 micron

Motor 1 HP A.C. Motor

Control Panel 1 HP A.C.-Digital A.C. frequency Drive

(Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed adjustable, Sensor)

Mechanical Shaft Unwinder side Chuck-Nut-Bearing use

Jumbo Roll Capacity Upto 100 Kg

Mechanical Brake System for Tension Unwinder Jumbo Roll

Rewinding Speed: 100 MPM.

Production Capacity Approximately: 400 to 500 roll per day

Per 9 Hours Working. (72 mtr roll)

Weight of Machine 500 Kg Approx.

Machine Available: Single/ Three Phase
