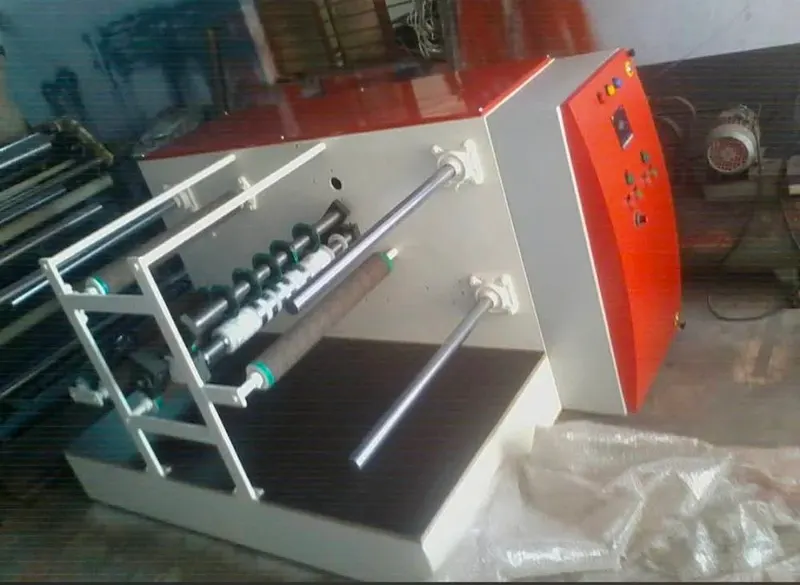

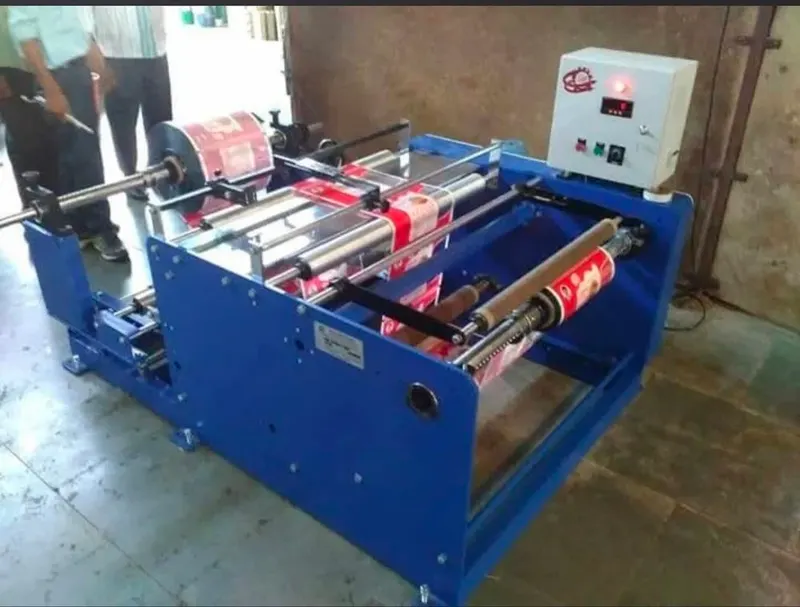

800mm Doctoring Rewinding Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Web Width: 800 mm
Machine Speed: 150 mpm

₹2,95,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Web Width	800 mm
Machine Speed	150 mpm
Material Type	Plastic Film, Laminates, Paper
Core ID	76 mm
Unwind Dia	800 mm
Rewind Dia	600 mm
Drive Type	AC Drive
Inspection Table	Yes
Edge Guide	Electronic
Machine Voltage	415 V

Machine details

(Doctoring) Winder Rewinder Machine
MS Plate Heavy Duty Machine Structure
Maximum Roll Width: 500mm & 800mm Standard Material will be Process LD, PP, Film, Pouch, Foil, etc,
Motor 2 HP & 3 HP A.C. Motor Control Panel 2 HP & 3 HP A.C. Digital frequency Drive (Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed adjustable-Sensor, Emergency Stop.) Cantilever Type Design Our Machine Easily Operating System Any make Printer (Batch Coding) use Our Machine Encoder Feedback for Batch Coding Jumbo Roll Capacity 50 Kg Mechanical Brake System for Tension Unwinder Jumbo Roll Web (Edge) Guide System-Hydraulic- (This machine so that you can take proper rewinding and finishing for Your Roll.) All Side Vertical Covered from M.S. Sheet Heavy Duty Chain Drive System Rewinding Speed: 150 MPM. Weight of Machine 1000 Kg Approx.
Optional Items Available
Air Shaft-Unwinder & Rewinder Side Electrical Web (Edge) Guide & Line Guide System
Auto Tension Control System Sob-Scope System

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555
