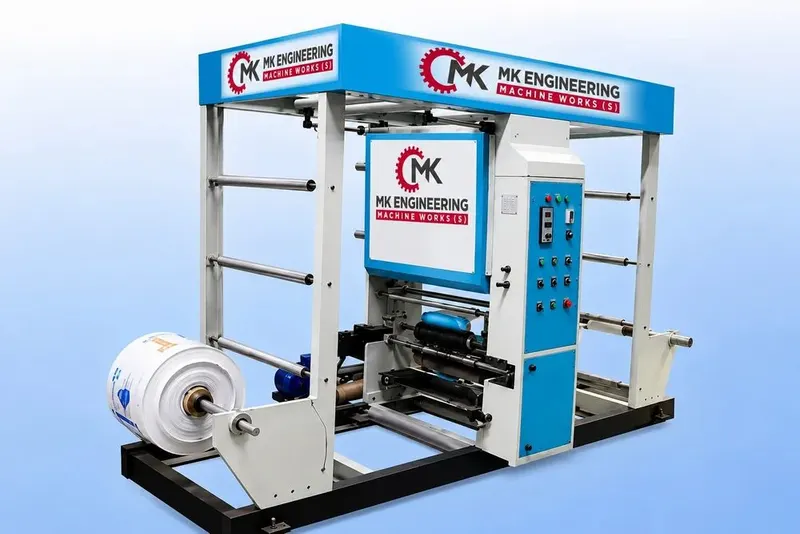

650mm Rotogravure Printing Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Max Web Width: 650mm
Max Mechanical Speed: 300 m/min

₹5,25,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Max Web Width	650mm
Printing Colors	8 Color
Max Mechanical Speed	300 m/min
Substrate Thickness	30 µm
Drying System	Thermic Fluid
Rewind Diameter	600 mm
Web Handling	Surface Winder

Machine details

Rotogravure Printing Machine
MS Plate Heavy Duty Machine StructureMaximum Roll Width: 500mm to 2000mm Standard Material will be Process: LD, PP, Polyester-BOPP Film, Pouch, Aluminum Foil, Paper etc. Flexible & Packaging Industries all material use our machine Single Colour to Eight Colour Printing Printing Cylinder Design As Per require-Customer Side Per Printing Station Heavy Duty MS Structure Drum Roller, Aluminum Guide Roller, Banana Rubber Roller Assembly. Doctor Blade System Motor 5 HP A.C. Motor Control Panel 5 HP A.C. Digital frequency Drive (Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed adjustable-Sensor, Emergency Stop.) Our Machine Easily Operating System Mechanical Shaft Unwinder-Rewinder Side Chuck-Nut-Bearing use Jumbo Roll Capacity Upto 500 Kg Mechanical Brake System for Tension Unwinder Jumbo Roll Web (Edge) Guide System-Hydraulic- (This machine so that you can take proper rewinding and finishing for Your Roll.) 1 HP Blower System Per Printing Station All Side Vertical Covered from M.S. Sheet Heavy Duty Chain Drive System Rewinding Speed: 100 MPM. Machine Available: Three Phase
Optional Items Available
Air Shaft-Unwinder & Rewinder Side Heavy Duty Timing Belt System Electrical Web (Edge) Guide & Line Guide System Pneumatic Brake-Semi Automatic Brake System Auto Tension Control System-Automatic Brake System High Speed Require so Available 3 Drive/4 Drive System-500 MPM High Speed

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555
