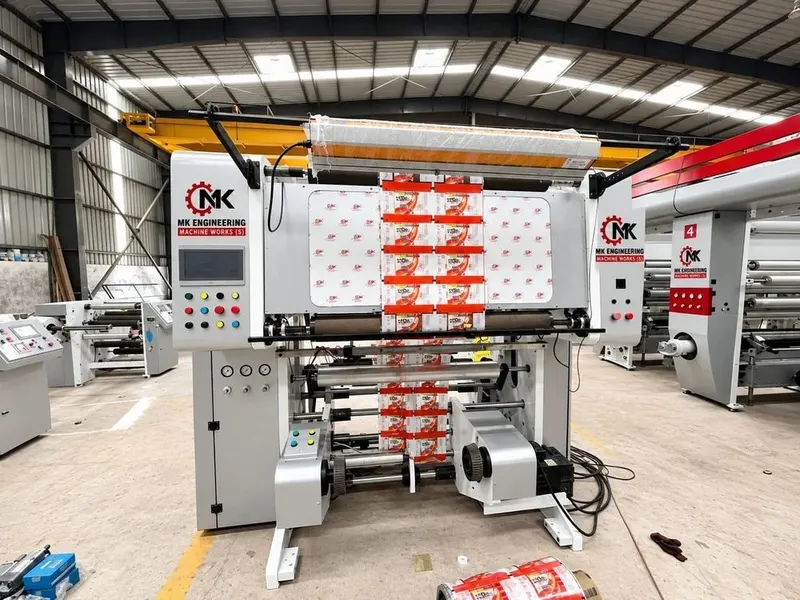

1000mm Cantilever Slitting Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Max Web Width: 1000 mm
Line Speed: 200 m/min
Automation Grade: Semi Automatic

₹25,50,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Material	Paper, Film, Textile, Foil, Nonwoven, Laminates
Max Web Width	1000 mm
Slitting Type	Shear Slitting
Min Slit Width	20 mm
Automation Grade	Semi Automatic
Line Speed	200 m/min
Rewind Type	Duplex Rewind
Unwind Type	Double Unwind
Web Guide	Edge Guide

Machine details

Drum Type, Center Shaft Type (Shaft Winder Type), Surface Type (Double Drum Type) Slitting Rewinding Machine, Unwinder Rewinder with Slitting, Doctoring Cum Slitting Rewinding Machine, Stretch Film Roll Slitting Rewinding Machine, Thermal Paper-ATM-POS Slitting Rewinding Machine
Flexible & Packaging Industries all material use our Slitting Rewinding Machine.
Material will be Process: Paper, Fabric, Film, Plastic, HDPE, LD, PP, Film, BOPP-Polyester Film, Stretch Film, Cling Film, PVC Film, All type Fabric, Non-Woven Fabric, Pouch, Foil, Aluminum Foil, Pharma Foil, Blister Foil, Kraft Paper, Paper Cup, Thermal Paper, Blister Paper, Foil Paper, Butter Paper, Laminated Paper, Rubber etc.
Technical Specifications: MS Plate Heavy Duty Machine Structure Roll Width: 500mm to 2500mm Standard Motor 3 HP to 12 HP A.C. Motor Control Panel 3 HP to 12 HP A.C. Digital frequency Drive (Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed
Adjustable-Sensor, Emergency Stop.) Our Machine Easily Operating System Mechanical Shaft Unwinder/Rewinder side Chuck-Nut-Bearing use Jumbo Roll Weight Capacity Upto 1000Kg Slitting System with Cutter Assembly Unwinder/Rewinder Roll Dia Mtr Upto 1000mm Mechanical Brake System for Tension Unwinder Jumbo Roll Rewinding Side Clutch System
Web (Edge) Guide System-Hydraulic- (This machine so that you can take proper rewinding and finishing for Your Roll.) Blower for Trimming Arrangement All Side Vertical Covered from M.S. Sheet Heavy Duty Chain Drive System Rewinding Speed: 150 MPM. Weight of Machine 3000 Kg Approx. Machine Available: Three Phase
Optional Items Available Air Shaft-Unwinder & Rewinder Side Heavy Duty Timing Belt System Electrical Web (Edge) Guide & Line Guide System Pneumatic Brake-Semi Automatic Brake System Auto Tension Control System-Automatic Brake System High Speed Require so Available 3 Drive/4 Drive System-300 MPM High Speed

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555
