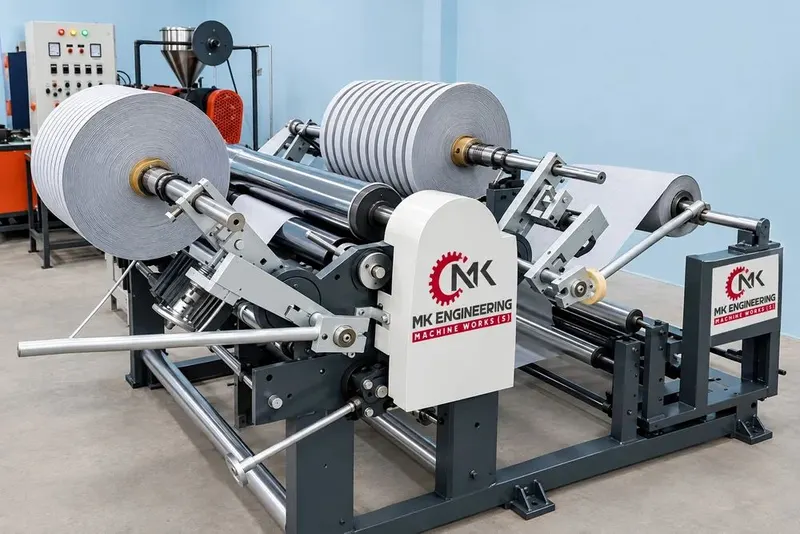

1200mm Drum Paper Slitting Rewinding Machine

Technical specifications

Machine details

• Drum Type, Center Shaft Type (Shaft Winder Type), Surface Type (Double Drum Type) Slitting Rewinding Machine, Unwinder Rewinder with Slitting, Doctoring Cum Slitting Rewinding Machine, Stretch Film Roll Slitting Rewinding Machine, Thermal Paper-ATM-POS Slitting Rewinding Machine
• Flexible & Packaging Industries all material use our Slitting Rewinding Machine.
• Material will be Process: Paper, Fabric, Film, Plastic, HDPE, LD, PP, Film, BOPP-Polyester Film, Stretch Film, Cling Film, PVC Film, All type Fabric, Non-Woven Fabric, Pouch, Foil, Aluminum Foil, Pharma Foil, Blister Foil, Kraft Paper, Paper Cup, Thermal Paper, Blister Paper, Foil Paper, Butter Paper, Laminated Paper, Rubber etc.
• Technical Specifications: MS Plate Heavy Duty Machine Structure Roll Width: 500mm to 2500mm Standard Motor 3 HP to 12 HP A.C. Motor Control Panel 3 HP to 12 HP A.C. Digital frequency Drive (Panel Section we provide you Auto Start and Stop Button, Length Counting meter, Speed
• Adjustable-Sensor, Emergency Stop.) Our Machine Easily Operating System Mechanical Shaft Unwinder/Rewinder side Chuck-Nut-Bearing use Jumbo Roll Weight Capacity Upto 1000Kg Slitting System with Cutter Assembly Unwinder/Rewinder Roll Dia Mtr Upto 1000mm Mechanical Brake System for Tension Unwinder Jumbo Roll Rewinding Side Clutch System
• Web (Edge) Guide System-Hydraulic- (This machine so that you can take proper rewinding and finishing for Your Roll.) Blower for Trimming Arrangement All Side Vertical Covered from M.S. Sheet Heavy Duty Chain Drive System Rewinding Speed: 150 MPM. Weight of Machine 3000 Kg Approx. Machine Available: Three Phase
• Optional Items Available Air Shaft-Unwinder & Rewinder Side Heavy Duty Timing Belt System Electrical Web (Edge) Guide & Line Guide System Pneumatic Brake-Semi Automatic Brake System Auto Tension Control System-Automatic Brake System High Speed Require so Available 3 Drive/4 Drive System-300 MPM High Speed

Additional information

• Availability: In Stock
• Ships from: Ahmedabad
