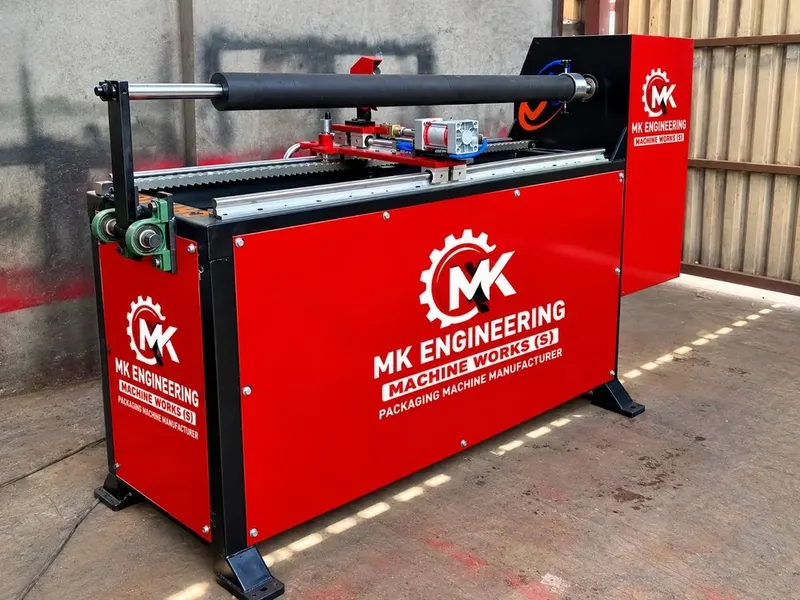

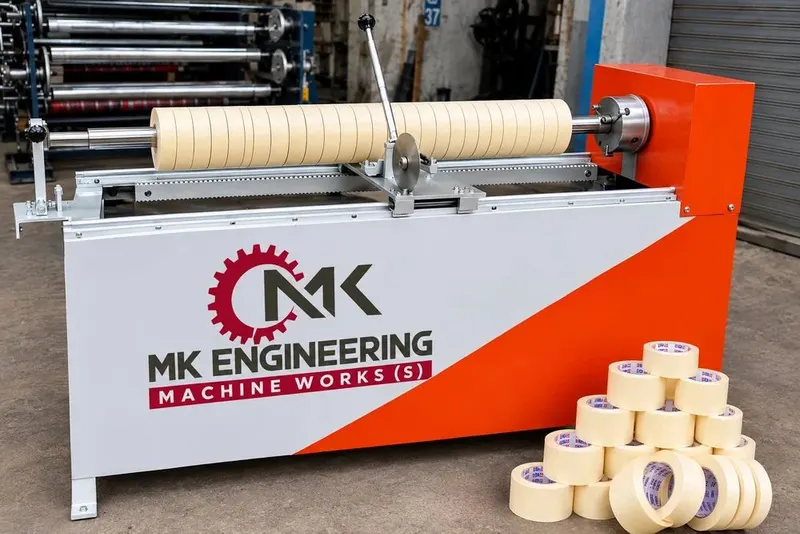

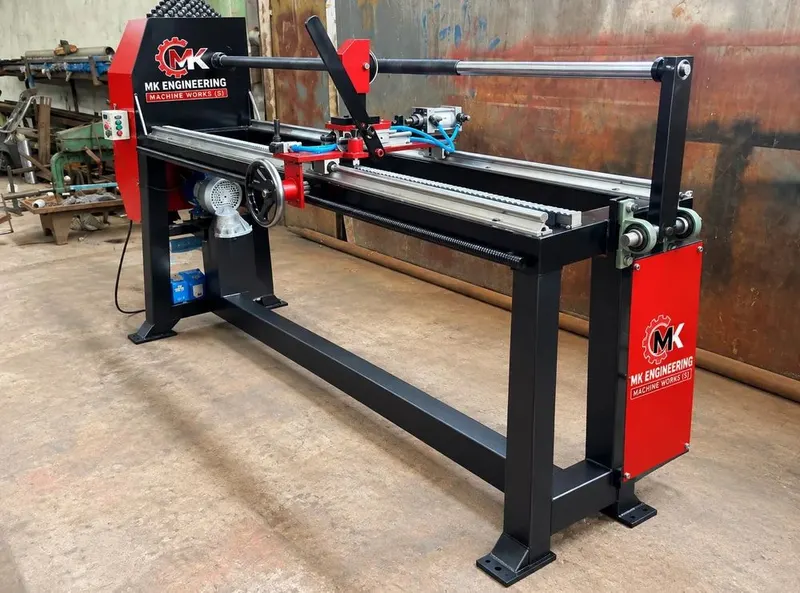

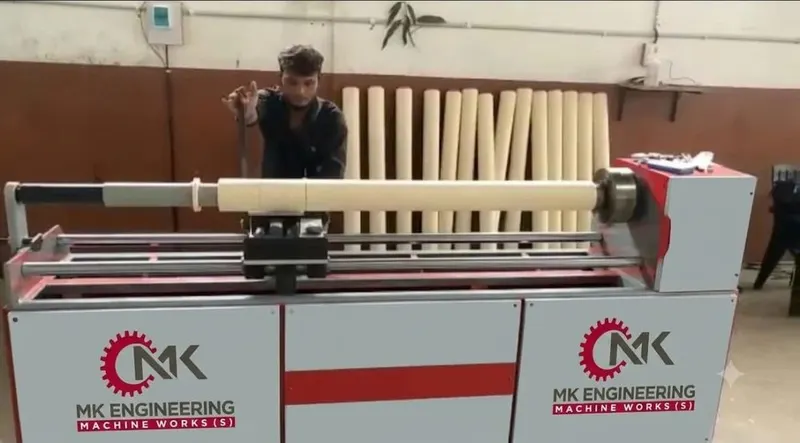

1250mm Automatic Pvc Electric Tape Cutting Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Max roll width: 1300 mm
Cutting speed: 50 m/min
Automation: Semi automatic

₹3,65,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Max roll width	1300 mm
Cutting speed	50 m/min
Power load	5 kW
Min cut width	5 mm
Core id	38 mm
Phase	Single phase
Automation	Semi automatic
Body material	MS

Machine details

Abro-Masking Tape & PVC Insulation Electrical Tape Slicer Machine
Tape Cutting (Slicer) Machine
Heavy Duty Machine Structure

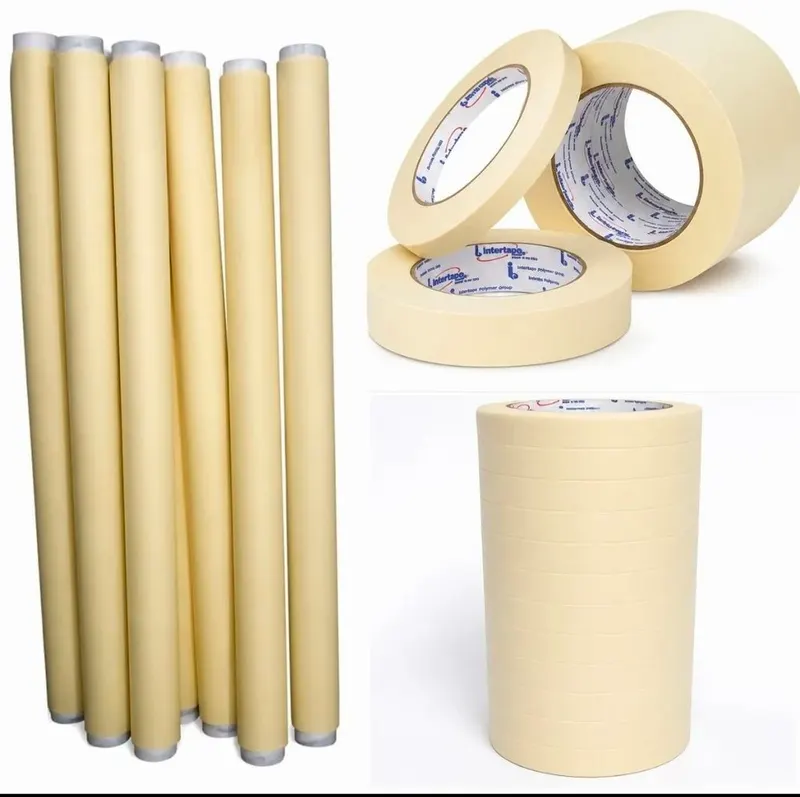

Maximum Web width: 1350mm & 1650mm Standard Material will be Process PVC Insulation Electrical Tape, Abro Masking Tape , Paper Tape, Surgical Tape, Double Side Tape, Foam Tape Motor 2 HP A.C. Motor PP Make Shaft & MS Shaft with Chrome
76mm Id & 38mm Id etc. Safety Chuck Heavy Lock for Shaft Chuck-Nut-Bearing use Better finishing, assembly of V Belt & Pulley All Side Vertical Covered from M.S. Sheet 1 No. Blade Cutter with Vertical Covered from M.S. Sheet 1 No. On/Off Switch Hand Operated-Pneumatic-PLC Base Fully Automatic All Available Model Weight of Machine 300 Kg Approx. Machine Available: Single/ Three Phase

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555

1250mm Automatic Pvc Electric Tape Cutting Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Max roll width

1300 mm

Cutting speed

50 m/min

Automation

Semi automatic

₹3,65,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Quality tested

Custom built

Pan-India delivery

Max roll width

1300 mm

Cutting speed

50 m/min

Power load

5 kW

Min cut width

5 mm

Core id

38 mm

Phase

Single phase

Automation

Semi automatic

Body material

Machine details

Abro-Masking Tape & PVC Insulation Electrical Tape Slicer Machine

Tape Cutting (Slicer) Machine

Heavy Duty Machine Structure

Maximum Web width: 1350mm & 1650mm Standard Material will be Process PVC Insulation Electrical Tape, Abro Masking Tape , Paper Tape, Surgical Tape, Double Side Tape, Foam Tape Motor 2 HP A.C. Motor PP Make Shaft & MS Shaft with Chrome

76mm Id & 38mm Id etc. Safety Chuck Heavy Lock for Shaft Chuck-Nut-Bearing use Better finishing, assembly of V Belt & Pulley All Side Vertical Covered from M.S. Sheet 1 No. Blade Cutter with Vertical Covered from M.S. Sheet 1 No. On/Off Switch Hand Operated-Pneumatic-PLC Base Fully Automatic All Available Model Weight of Machine 300 Kg Approx. Machine Available: Single/ Three Phase
