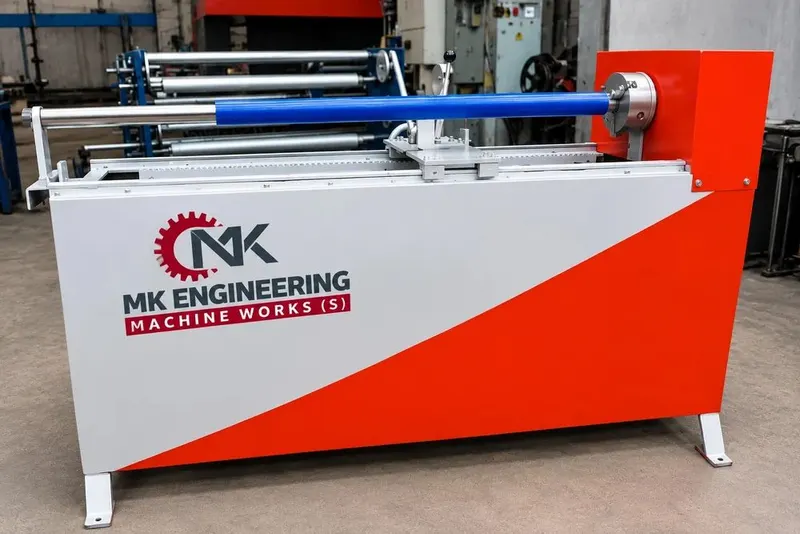

1350mm Pvc Electric Tape Slicer Cutting Machine

Manufactured by MK Engineering Machine Works (S), Ahmedabad. Built to your web width, speed and automation requirements with in-house fabrication and machining.

Max roll width: 500 mm
Cutting speed: 50 m/min
Automation: Automatic

₹1,10,000 / Piece

Excluding GST. Final price depends on width, drives and options. Ask for an exact quote.

Get best quote WhatsApp us Call +91 70460 04555

Quality tested
Custom built
Pan-India delivery

Technical specifications

Max roll width	500 mm
Min slice width	10 mm
Cutting speed	50 m/min
Power load	3 kW
Core id	1350mm
Automation	Automatic
Brand	Mk Engineering

Machine details

Abro-Masking Tape & PVC Insulation Electrical Tape Slicer Machine
Tape Cutting (Slicer) Machine
Heavy Duty Machine Structure
Maximum Web width: 1350mm & 1650mm Standard Material will be Process PVC Insulation Electrical Tape, Abro Masking Tape , Paper Tape, Surgical Tape, Double Side Tape, Foam Tape Motor 2 HP A.C. Motor PP Make Shaft & MS Shaft with Chrome
76mm Id & 38mm Id etc. Safety Chuck Heavy Lock for Shaft Chuck-Nut-Bearing use Better finishing, assembly of V Belt & Pulley All Side Vertical Covered from M.S. Sheet 1 No. Blade Cutter with Vertical Covered from M.S. Sheet 1 No. On/Off Switch Hand Operated-Pneumatic-PLC Base Fully Automatic All Available Model Weight of Machine 300 Kg Approx. Machine Available: Single/ Three Phase

Additional information

Availability: In Stock
Ships from: Ahmedabad

Looking for a machine built to your spec?

Share your material, web width and output target. We will recommend the right model and send a quote, usually the same day.

Request a quote +91 70460 04555
